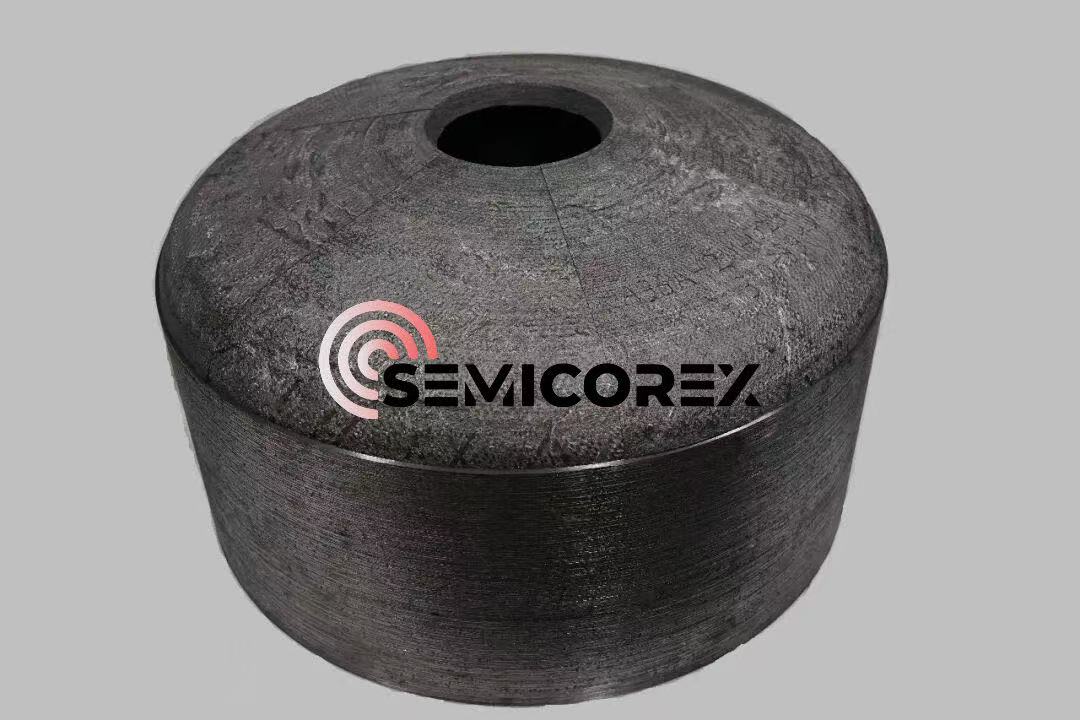

The carbon-carbon composite crucibles primarily stabilize crucible in the hot zone system of crystal pulling furnaces. This effectively ensures smooth silicon ingot production under high-temperature pulling conditions. Boasting exceptional performance that significantly enhances silicon ingot quality and production efficiency, it is widely used in the semiconductor and photovoltaic industries.

Semicorex carbon-carbon composite crucibles are refined from high-performance carbon fiber preforms via a combination of chemical vapor deposition (CVD) and graphitization. This precise manufacturing process yields crucibles with a dense structure and uniform composition, ensuring stable performance that meets the demands of continuous multi-batch use in crystal pulling furnaces.

The technical index:

The technical index	Unit	Carbon-carbon Composite Crucibles
Density	g/m^3	≥1.4（It can be customized）
Ash content	ppm	＜200
Tensile strength	Mpa	≥80
Flexural strength	Mpa	≥120
Compression strength	Mpa	≥120
Thermal conductivity	W/(m*K)	30-40
Max. application temperature	℃	Vacuum atmosphere: 2500 Inert Atmosphere: 3000
Treatment temperature	℃	2000-2400

Semicorex always prioritizes the core needs of our valued customers, providing them with high-end customized services. To ensure seamless compatibility between the final customized carbon-carbon composite crucibles and various crystal pulling furnace models, we offer customization of crucible specifications and parameters based on customer needs, effectively enhancing equipment operating efficiency and production stability.

Semicorex has set up a comprehensive, high-standard product quality control system. Every our carbon-carbon composite crucible goes through multiple rigorous inspections, each step guided by clear quantitative standards and full professional supervision, thus guaranteeing all delivered units satisfy high-temperature stable operation needs.
